DWDM equipment

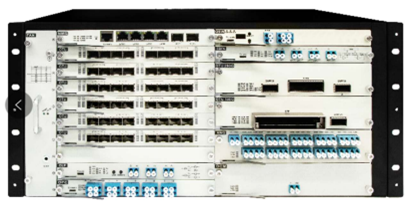

XJ8600-5U
5U height, can be slotted 20 slots (supports multiple rates.)OTUThe optical forwarding c ard can be expanded to provide customers with customizationservices). The maximum capacity is 8Tbps. Two power supplies (AC or DC).
By matching optical transpondering units, multiplexers/demultiplexers, optical amplifiers, optical monitoring channels,OTDR、OCMIt forms a hardware platform to meet the needs of a variety of optical c ommunication scenarios, and can be used as a system for data centers, cloud services, and similar systemsOne system. It supports a variety of customer-side rates and line speeds up to 400G, which can meet the most complex service types and speed requirements of various users.
l Unique 5U 19" 20 daughter card rac
l surpassTbitCapacity, 400G/8T
l Ultra long range 2000km
l ODUX 10G/100G
l Dual power supplies are pluggable for 1+1 protection
l Multiple service cards are mixed with protection

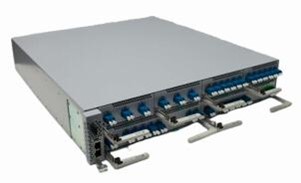

XJ8600-2UA
2U height, can be slotted 8 slots (support multiple rates.)OTUOptical forwarding card expansion to provide customers with customization services). The maximum capacity is 1.4Tbps. Two power supplies (AC or DC).
By matching optical transpondering units, multiplexers/demultiplexers, optical amplifiers, optical monitoring channels,OTDR、OCMIt forms a hardware platform to meet the needs of a variety of optical communication scenarios, and can be used as a system for data centers, cloud services, and similar systemsOne system. It supports a variety of customer-side rates and line speeds up to 400G, which can meet the most complex service types and speed requirements of various users.
XJ8200
2U mechanical frame, the chassis is completely constructed of passive components for high reliability. It supports a variety of customer-side rates and line speeds up to 400G, which can meet the most complex service types and speed requirements of various users. (Yes.)Multi-rate OTU optical forwarding card expansion to provide customers with customized services). The maximum capacity is 6.4Tbps. acceptVarious power supplies, egAV220V,HDC230V and -48VDCto adapt to a variety of data center situations.
l Ultra-high integration: 2U high, supports 8 800G service slots
l Customer side: support 10GE/100GE/100GFlexE/100GOTU4/200GE/400GE
l Line side: Support single-wave 100G/200G/300G/400G
l Ultra-large capacity: A single chassis can carry up to 6.4 Tbit/s of service capacity, reaching the industry-leading level
XJ8600-2UA
The XJ series DWDM transmission system equipment has a super large capacity transmission capacity of up to 400G per channel, excellent 100G transmission performance, dispersion tolerance of 22000ps/nm, and supports non electric relay transmission of over 1200 kilometers, saving investment and greatly facilitating operation and maintenance. Flexible and comprehensive business access supports transparent transmission of all services, telecom level reliability protection supports optical layer, line side, power 1+1 protection, excellent architecture is convenient and easy to maintain, standard 19 inch rack design does not require installation, plug and play, and a unified network management platform.
By combining optical forwarding units, multiplexers/demultiplexers, optical amplifiers, optical monitoring channels, OTDR, and OCM to form a hardware platform, it can meet the needs of various optical communication scenarios and can be used as a unified system for data centers, cloud services, and similar systems. Supporting multiple customer side speeds and up to 400G line speeds can meet the most complex service types and speed requirements of various users.
1U high, capable of 4 slots (supporting various speeds of OTU optical card expansion, providing customized services for customers). Two power sources (AC or DC).
Channel interfaces: 1X100G, 1X200GCFP2, 1X16G, 1X32G
Client interfaces 100GE/OTU4/10GE, OTU4/OTU2/OTU2e, STM-64, 10G/16G/32G fiber channel
XJ8600-2U
2U mechanical frame, The chassis is constructed entirely of passive components for high reliability. Support a variety of customer side speeds rate and up to 400G The line speed can meet the most complex service types for a variety of users and speed requirements. (Yes.)Multiple rates OTU optical forwarding card expansion to provide customers with customized services). The maximum capacity is 3.2Tbps. acceptVarious power supplies, egAV220V,HDC230V and -48VDCto adapt to a variety of data center situations.
l A maximum of 4 200G modules can be installed
l 2 x CFP2200G and 1 x 400G line interface
l 2 x QSFP28 100G and 12 SFP+ 10G client interface(OTU4 or 100GE)
l Up to 8 x 400G can be installed module
l 1 x 400G Line interface
l 4 QSFP28 client interfaces
