IP/MPLS Devices, switches, and routers

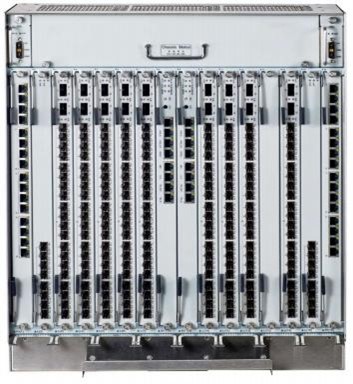

XJ-9900
The XJ-9900 convergence device is based on:MPLS-TPThe device can be configured with different boards and support different interface capabilities and switching capacities. The maximum switching capacity of the device can reach 480G, and it can be lifted up to 10GE、GE、STM-1, E1 and other interfaces.
l 12.5U height, can meet 300/600mmtargetETSIRack mounting requirements.
l 480 GB massive services can be freely scheduled, and 14 service slots can be provided.
l Ultra-high access capability:28*10GE, 280*GE/FX/FE, 112*SMT-1,64*B1。
l PerfectL2VPNBusiness model:E-LAN/E-Tree/E-Line,Meet the isolation of different applications and services.
l Complete branch and line protection,asLSP1:1/1+1、PW1:1/1+1、SNC/S、LAG、M SP1:1/1+1andwrappingring protection, etc.
l Abundant synchronization solutions,Ethernet synchronization is supported/1PPS+TOD/IEEE1588V2and other synchronization methods.
l Multi-levelOAM,At the same time, it is supportedG.8113.1andG.8113.2standard;In the tank802.1ag,802.3a hand802.1abEthernetOAM。
l HierarchicalQOSfunction,Ensuring the different quality assurance needs of diverse businesses.
l Carrier-grade operation and maintenance platform and convenient plug-and-play functions.
l Low power consumption and energy-saving design,The power consumption of the fully configured service is less than that 900W。
l Complete1+1Redundant design,Power supply included,Master control,clock,exchange, etc.

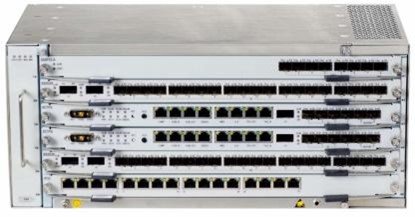

XJ-221
The XJ-221 type convergence equipment is based on:MPLS-TPThe maximum switching capacity of the device can reach 220G, Available in 10GE、GE、STM-1, E1, voice, and other interfaces.
l 220G capacity swap provides super access capability: 16 x 10GE,64*GE/FX/FB,16*STM-1,64*E1。
l Perfect L2VPNBusiness Model: E-LAN/B-Tree/E-Line,Meet the isolation of different applications and services.
l Complete branch and line protection, such as:LSP1:1/ 1+1、PW1:1、SNC/S、LAG, MSP1:1/1+1 protection.
l Abundant synchronization solutions support Ethernet/1PPS+TOD/IEEE 1588V2 and other synchronization partiesStyle.
l Multi-level OAM with support for both G.8113.1 and G.8113.2 standards; Supports 802.1ag, 802.3ah and 802.1ab Ethernet OAM.
l HierarchicalQOSfunctions to ensure the different quality assurance needs of diversified businesses.
l The carrier-class operation and maintenance platform and convenient plug-and-play functions of equipment help construction and maintenance.
l Complete 1+1 redundancy design, including power supply, main control, clock, switching, etc.

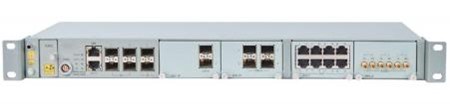

XJ-711-A
XJ-711-A is based on:MPLS-TPA new generation of metro optical transmission and gateway equipment for packet transmission, which realizes a dual-service switching platform based on time slot switching and packet switching; The maximum switching capacity of the device can reach 62G, which can provide 10GE、GE、STM-1,STM-416,DS3/B3, E1/T1 and other interfaces.
l 1U height, can meet 300/600mmtargetETSIRack mount installation requirements.
l 62G switching capacity, providing super access capability: 4 x 10GE,22*GE/FE,16*STM-1,8*STM- 4,4*STM-16,12*DS3/E3,48*E1/T1。
l intactEthernetandSDHInterface type, perfect implementationETHandSDHDual-plane service transfer andFusion.
l The ingenious design of motherboard + 4 daughter cards provides a variety of interface types and a variety of product combinations.
l Perfect L2VPNBusiness Model: E-LAN/E-Tree/E-Line,Meet the isolation of different applications and services.
l Complete branch and line protection, such as:LSP1:1/1+1、PW1:1、SNC/S、LAG, MSP1:1/1+1 protection.

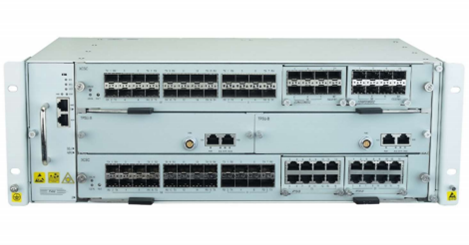

XJ8800
The XJ-8800 convergence device is based on:MPLS-TPa new generation of metro optical transmission equipment for packet transmission; The maximum switching capacity of the device can reach 220G, Available in 10GE、GE、STM-1, E1 and other interfaces.
l 4Uheight,Satisfied300/600mmtargetETSIRack mount installation requirements.
l 92Gof the exchange capacity,A variety of interface types are available:10*10GE,92*GE/FE,32*STM-1,32 *E1。
l Yes32pieceE1interface1+1TPSProtection.
l PerfectL2VPNBusiness-oriented:E-LAN/E-Tree/E-Line,Meet the isolation of different applications and services.
l Complete branch and line protection,asLSP1:1/1+1、PW1:1、SNC/S、LAG、MSP1:1/1+1Protection.
l Abundant synchronization solutions,Ethernet synchronization is supported/1PPS+TOD/IEEE1588V2and other synchronization methods.
l Multi-levelOAM,At the same time, it is supportedG.8113.1andG.8113.2standard;In the tank802.1ag,802.3ahand802.1abEthernetOAM。
l HierarchicalQOSfunction,Ensuring the different quality assurance needs of diverse businesses.
l Carrier-grade operation and maintenance platform and convenient plug-and-play functions for equipment.
l Complete redundancy design,Power supply included,Master control,clock,Redundant protection for switching.
