GPONOLT/ONT equipment
XJ-6860
5U standard rack, 4 x 10GE/GEport, 1 x N45 (RS232)Serial port, 1 x R45 out-of-band management interface,GPONService board, 16 ports,XG(S)PON&GPONService board, 8 ports, 10GEUplink the service board, 8 ports.
laccord withITU-TG.984/G.987/G.988standards, with good interoperability
l GPON/XG(S)PONA unified platform for multiple services facilitates subsequent network upgrades and technology evolution
l Dual master control, dual power redundancy,PONBackbone optical fiber protection ensures service continuity and stability
l 5U 19-inch chassis, up to 80*GPONPort/40*XG(S)PON&GPONPort, small size, high density, low power consumption
l The modular design of the whole machine supports hot-swappable cards
l Abundant Layer 2 functions
l powerfulQOSFunctionality guarantees quality of service
l Unified network management platform
XJ-HT803G-6
l GPONand EPONpattern adaptation,
l High-speed access, with a maximum downlink of 2.5 Gbit/s and an uplink of 1.25 Gbit/s
l 4 Gigabit are availableLANInterface, 2 voice ports, 1 portUSBinterface and 3000MbpswFi
l In the tankIPTVaccess
l Supports up to 20KMTransmission distance
l In the tankONUAuto-discovery/link inspection/remote software upgrades
l In the tankOAM/OMCIProtocol management
XJ-HT803G-4
l GPONandEPONpattern adaptation,
l High-speed access, with a maximum downlink of 2.5 Gbit/s and an uplink of 1.25 Gbit/s
l 4 Gigabit are availableLANInterface, 2 voice ports, 1 portUSBinterface and 1200MbpswFi
l In the tankIPTVaccess
l Supports up to 20KMTransmission distance
l In the tankONUAuto-discovery/link inspection/remote software upgrades
l In the tankOAM/OMCIProtocol management
XJ-HT803G-2
l GPONandEPONMode adaptive
l High-speed access, with a maximum downlink of 2.5 Gbit/s and an uplink of 1.25 Gbit/s
l It provides 1 Gigabit LAN interface, 3 Gigabit and 2.4GWFi 300Mbps
l In the tankIPTVaccess
l Supports up to 20KMTransmission distance
l In the tankONUAuto-discovery/link inspection/remote software upgrades
l In the tankOAM/OMCIProtocol management

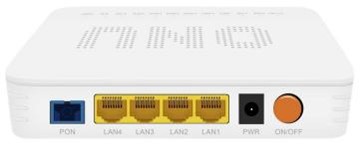

XJ-HT803G-1
l GPONandEPONMode adaptive
l High-speed access, with a maximum downlink of 2.5 Gbit/s and an uplink of 1.25 Gbit/s
l 4 Gigabit are availableLANinterface
l In the tankIPTVaccess
l Supports up to 20KMTransmission distance
l In the tankONUAuto-discovery/link inspection/remote software upgrades
l In the tankOAM/OMCIProtocol management

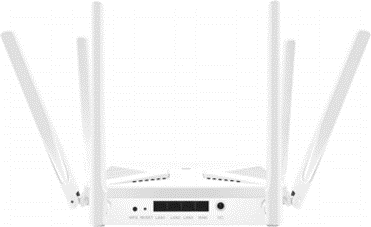

XJ-W600无线路由器
l Dual-band 3000Mbps, WFi6+, HE160MHZ, to meet the needs of high band capacity
l Dual-coreARMArchitectureCPU，Match 256MBLarge memory, faster and more stable
l WAN、LANFull gigabit, support gigabit fiber broadband access,IPTVaccess
l External 6 antennas, precision layout, wider coverage, longer transmission distance
l MeshNetworkingMultiple routers achieve seamless networkingLight catsONU

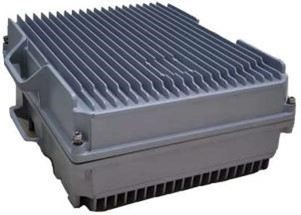

XJ-5508Q
8 mouths of the field typeGPONOLTEquipment, optionally built-inEDFAFiber optic amplifier, product followITU-T G.984/G.988 technical standard, good product openness, High reliability, full-featured software, and flexible compatibility with anythingbrandONT。 The product is suitable for outdoor harsh environment, resistant to high and low temperatures, and can be widely used in the field of operatorsFTTHpick upaccess, video surveillance, enterprise network, Internet of Things, etc.
According to the environment, it can be equipped with two ways: pole or wall mounting, which is easy to install and maintain. The equipment adopts the most advanced in the industrytechnology to provide customers with efficientGPONsolutions that support different typesONUThe hybrid networking can be savedMassive costs.
XJ-6801
l 1U standard rack, support 1+1 power redundancy.
l Maximum switching capacity: 108Gbps; IPV4/IPV6: 95.23MPPS.
l It provides 16 fixed GPON ports, 4 GECOMBO ports, 2 10GE SFP+ optical ports, 1 console port and 1 ETH port.
l ITU-TG.984.X compliant; It supports a single-fiber terminal access distance of 20 km.
l A single PON port supports a 1:128 splitting ratio.
l Multiple ONU terminal authentication modes are supported.
l Supports dynamic bandwidth allocation DBA algorithms.
l Support standard OMCI management functions; Support batch upgrade of ONU software; Support PON liplight parameter detection.
l Static Routing, DHCP Server, DHcpsnooping, DHCP Proxy, and OSPF are supported.
l Cloud management is supported.
XJ-5508
l Maximum switching capacity: 82Gbps; IPV4/IPV6 PACKET FORWARDING RATE: 68.45MPPS.
lIt can provide 8 fixed GPON ports, 4 GE ports, 2 GESFP ports, 2 10GESFP+ ports, 1 console port and 1 ETH port.
l A single PON port supports a 1:128 splitting ratio.
l Multiple ONU terminal authentication modes are supported.
l Supports dynamic bandwidth allocation DBA algorithms.
l Support standard OMCI management function, support ONU software batch upgrade; Support PON port optical parameter detection.
l Static routing, DHCP server, DHcpsnooping, DHCP proxy, and OSPF are supported
l Cloud management is supported.
