Digital Microwave Equipment Transmision System
XJ-4206A and XJ-8010A are high-capacity,all outdoor microwave systems operating in frequency bands of 6-42GHz,71GHz-76GHz,and 81GH2-86GHz.The 1+0 configuration can provide a unidirectional transmission rate of 10Gbps,while the 2+0 XPIC configuration can achieve a unidirectional transmission rate of up to 20Gbps.The channel bandwidth supports 62.5,150,250,500,750,1000,1250,1500,1750,and 2000MHz.Supports adaptive bandwidth modulation, with modulation methods ranging from BPSK to 512QAM.
XJ-4206A and XJ-8010A are multi-purpose high-capacity Ethernet backhaul and fronthaul systems.It is lightweight,occupies a small area and is suitable for a variety of different applications. Due to its small footprint, lowpower consumption,and simple installation,it can be installed in many different types of remote outdoor locations.Suitable for various deployment scenarios, such as macro site backhaul, cellular site backhaul, cell fronthaul.

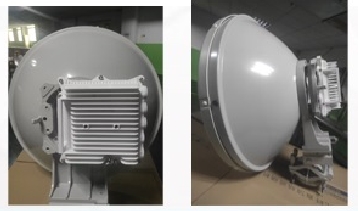

XJ-4206A
l Frequency range: Support for 6-42GHz.Low frequency band resistance is good, can transit a long distance.
l Maximum rate of empty mouth: 5.4 Gbps (@64 bytes)
l System delay: Nanosecond level
l Business interface: Support GE/10GE optical interface, GE/10GE electrical interface
l Clock synchronization: Supports Sync E, 1588 TC/BC
l Device architecture: All outdoor integration
l PoE supply electricity: Support
l Power consumption of equipaent: ≤70W
l Adapt antennasize: Parabolic anterna:0.3m-3m
l Application scerar1os: Large capacity transnission of longer distances is up to 50 km
XJ-8010A
l Frequency range: Working at 71-76GHz,81-86GHz，providing large channel bandwidth, high transmission rate.
l Maximum rate of empty mouth: 10 Gbps (@64 bytes)
l System delay: Nanosecond level
l Business interface: Support GE/10GE optical interface, GE electrical interface
l Clock synchronization: Supports Sync E, 1588 TC/BC
l Device architecture: All outdoor integration
l PoE supply electricity: Support
l Power consumption of equipaent: ≤60W
l Adapt antennasize: Support for an integrated flat-panel antenna;Support for parabolic antenma:0.3m-0.9m
l Application scerar1os: Very large capacity transmission up to 5 km
XJ-30K10~30KM distance transmission equipment
XJ-30K Outdoor Industrial Grade Antenna External Wireless Microwave Equipment, Wireless Microwave Equipment with External Antenna, TransmitterPower 32dBm, high receiving sensitivity, 802.11a/n protocol 300Mbps, net bandwidth above 240Mbps, microwave setStandby supports 802.11n and MIMOTechnology. In order to solve the problem of point-to-point or point-to-multipoint applications that require longer distances, It covers a wider area, which is convenient to add a large gain antenna and is designed with high performance, high bandwidth, multi-function and long distanceoff the outdoor wireless microwave device, which includes a point-to-point connection (PTP), point-to-multipoint connection, wireless relay, wireless roaming (WDSand all other wireless features. It also includes:irewal, VPN,bandwidth management, QOSWait. The device supports the expansion of external antenna interfaces, which can be used to supplement antennas to increase coverage and bandwidth. Depending on the situation in the field, different types of antennas can be connected externally, which can be used as 20KMdistance of the backbone of the transmission equipment.
l Standards Compatible: YesIEEE802.11a/n/acStandard, adoptionMIMO、OFDMand other advanced technologies;
l Stable and reliable: the average trouble-free time is greater than 80,000 hours, eliminating the phenomenon of crash and disconnection;
l Transmission Rate: Wireless rate up to 300Mbps/867Mbps, actual rate at 90Mbps and 200MbpsAbove;
l Transmission distance: high transmitting power combined with high receiving sensitivity, the longest distance can be reached 50 km;
l Network interface: Provides one 100 Gigabit adaptive Ethernet port, supporting 100 GigabitsPOEPower supply;
l Bandwidth selection: 5/10/20/40/80MHZMulti-bandwidth options, 40MHZBandwidth is available up to300Mbps transmission rate, 80MHZ bandwidth can provide up to 867Mbps transmission rate;
l Networking mode: support point-to-point, point-to-multipoint and other networking modes;
l Bandwidth Management: YesWMM(QOS),It supports priority mapping of air interface and wired interface to ensure voice and videofrequency service prioritization;
XJ-8k5~8KM distance transmission equipment
XJ-8K is a gigabit industrial-grade wireless high-bandwidth bridge device with built-in antenna, transmitting power30dBm, high receiver sensitivity, 802.11 A/N/AC protocol, The network bandwidth can reach 866Mbps, microwave equipment802.11 is supportedacandMIMOTechnology. In order to solve the point-to-point or point-to-multipoint application requirements for distance requirements far Wider coverage area, It is convenient to add large gain antennasOne of the meters has high performance, high bandwidth, and moreFunctional, long-range outdoor wireless microwave devices that include point-to-point connectivity (PTP), point-to-multipoint connectionconnection, wireless relay, wireless transparent transmission (WDS) and other wireless functions; At the same time, it also supports functions such as routing, DHCP, MCL, watchDog, NTP, and WEB server. It can be distributed in different locations and not It is connected with the LAN equipment between the buildings, with a wide range of applications, strong anti-interference ability and high bandwidth. Metal cast aluminum shell, all-weather windproof, rainproof, lightning, sunproof, dustproof, shockproof and heat dissipation design, with super maintenance-free characteristics, based on Ethernet cable power supply technology, easy to install and use outdoors; Since there is no need to lay special feeder cables, it can reduce transmission loss, shorten the construction period, and reduce construction costs, providing a reliable and cost-effective solution for wireless network applications.
l 5.8G frequency band work, no need to apply for frequency band
l High bandwidth, suitable for backbone link networking
l POEPower supply, simple and convenient construction
l The frequency channel is automatically adjusted, eliminating the need for manual modifications
l 30dBmOutput automatic gain control, high receiver sensitivity
l Point-to-point and point-to-multipoint video applications for seamless roaming
l The maximum transmission distance is 15 km or more
l MIMO technology, which can provide high net bandwidth stably and reliably
l Multiple non-interfering channels, suitable for a large number of dense deployments
XJ Shipborne mobile communication
Fully automatic support for 200 tracking target base stations, real-time horizontal pitch attitude adjustment
360 degree unlimited continuous rotation, 25 deg/s, high gain, high link bandwidth, 300Mbps
Ship-borne / airborne / vehicle-mounted dynamic communication intelligent directional antenna system, using 5HZGPSThe high-speed real-time automatic attitude calculation method realizes 360-degree horizontal continuous automatic rotation and pitch attitude adjustment according to the longitude and latitude positioning data and relative altitude data of the preset destination. Through the integration of high-gain directional antennas and high-speed microwave communication systems, high-speed and high-link bandwidth communication is realized between remote stations and long-distance real-time, stable and reliable wireless video transmission. It can be applied to the dynamic communication system of shipborne, airborne and vehicle-mounted communication system in the visual environment to achieve dynamic networking and automatic tracking.Compared with the traditional omnidirectional antenna mode, it has a high antenna gain, The longer the communication distance, and the betterThe communication transmission effect supports multi-target base station tracking.
This microwave equipment is miniaturized, lightweight, highly integrated, and a single device integrates electronic compass and BeidouGPS, high-speed stepper motor, using full-angle 360-degree automatic high speedAIIntelligent system, 360 degree continuous rotation, fully automatic pitch angle adjustment. Equipped with a directional microwave antenna system and high-speed microwave equipment, it can provide a high-speed and stable microwave transparent transmission link. The device is simple to install and maintain, and only one network cable is required to enter the cabinet, and no other data cables are required. After the system is powered off, the cold start is expected to automatically realize the communication link communication in about 1 minute, and the short-term power failure and restart the system usually only takes just 30 seconds to achieve link communication.
l WORKING FREQUENCY: 4900MHZ~5850MHZ
l Transmit power: 27dBm/30dBm
l ntenna gain: 18dBi (0.4m diameter)、23dBi (0.5m diameter)、29dBi (0.8m diameter)
l 29dBi (0.8m diameter)
l Bandwidth rate: 300Mbps/866Mbps
l Ethernet port mode: 1 x 10/100/1000M self-adaptive
l Network port type: 8pinIP67 aviation head
l Modulation Type:QPSK/16-QAM/64-QAM/In the tankTDMA
l Equipment power: 48VPOE 1.3A
l Settings Management:WEB/Telnet/SSHMultiple ways
